Our tug boat specifications
Tugs and barges are the workhorses of the offshore and marine world and helping in mooring or berthing operation of a vessel by either towing or pushing a vessel towards the port, barge handling in support of dredging operations to serving as monitoring or guard vessels and can be engaged in the purpose of providing essentials such as provision, water, supplies to the vessel.
| BUILT | 2009 |
| L.O.A | 24 Meters |
| BEAM | 8 Meters |
| DEPTH | 2.6 Meters |
| Girth | 12.67 Meters |
| Gross Tonnage | 174.409 ton |
| Net Tonnage | 96.380 ton |
| Main Engine | 2 Caterpillar x 425 HP per one |
| Built | 2021 Expected |
| Material | Steel |
| Depth | 3.60 Meters |
| Length | 25 Meters |
| Width | 8 Meters |
| Main Engines | 2x 1500 HP (Cummins) |

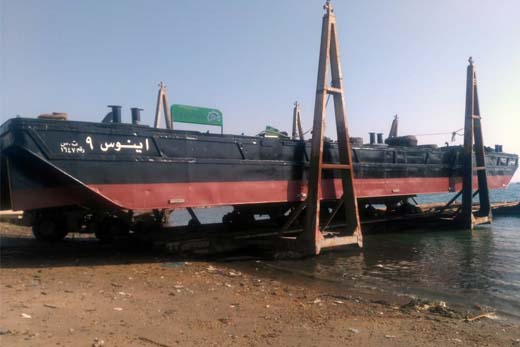

| Barge Name | Enos 9 |
| GRT | 454.600 Tons |
| Length | 33.500 Meters |
| Width | 12.200 Meters |
| Depth | 2.5 Meters |
| EQUIPMENTES ( Options if required ) : | |
| Accommodation | If Required |
| Lifting & Handling | If Required |
| Welding Machines | If Required |
| Generators | If Required |
| built | 2014 |
| Material | Steel |
| L O A | 22.85 Meters |
| Beam | 7.24 METERS |
| Depth | 3.74 METERS |
| Draught | 3.30 METERS |
| Main Engines | 1x 2000 HP CAT |
| Generators | 1×110 KVA (CAT) + 1×80 KVA (CAT) |
| Fire Fighting system | FIFI 1 (Fitted With 2 Montring) |
| Radar | Furuno M 1934c |
| Depth Sounder | Furuno Gp 1850 wdf |
| Gps | Furuno Navigator |
| Radio | Sailor RT 2048 |
| DECK | |
| Length | 17 M |
| BREADTH | 6.75 |
| Width | 3.80 |
| BUILT | 2011 |
| Modified construction | 2019 |
| Material | steel |
| L.o.A | 20.00 Meters |
| Beam | 5.95 Meters |
| Depth | 3.00 Meters |
| T- about | 1.50 Meters |
| Main Engines | 2 x VOLVO PENTA 750 HP |
| Generators | 1x perkins 4.4 TGM 50 K.V.A/50-60hz/1.500rpm/380v |
| Firefighting system | FIFI 1 (Fitted With 2 Montring) |
| Electronic supplied by | Radio holland |
| Radar | Furuno M 1934c |
| Depth sounder | Furuno Gp1850 wdf |
| Gps | Furuno Navigator |
| Radio | Sailor RT 2048 |
| Maximum speed | 12 Knots |
| built | 2011 |
| Modified construction | 2016 |
| Material | Steel |
| L.O.A | 22.00 Meters |
| Breadth | 6.00 Meters |
| Girth | 8.75 Meters |
| Gross Tonnage | 82.220 ton |
| Net Tonnage | 25.690 ton |
| Main Engines | 2 MAN x 520 HP |
| built | 2004 |
| Material | steel |
| L.o.A | 17.00 Meters |
| Beam | 4.75 Meters |
| Draft | 2.00 Meters |
| Gross Tonnage | 49.85 ton |
| Net Tonnage | 15.44 ton |
| Main Engines | 2 caterpiller x 425 HP |
| Generators | 1x Volvo 70k.vg |
| Electronic supplied by | Radio holland |
| built | 2005 |
| Material | steel |
| L.o.A | 17.00 Meters |
| Beam | 4.90 Meters |
| Depth | 2.00 Meters |
| Girth | 8.00 Meters |
| Gross tonnage | 44.680 ton |
| Net tonnage | 22.320 ton |
| T- about | 1.50 Meters |
| Main Engines | 2 X Volvo (2 x 500 HP) |
| Generators | 1 X Volvo 70k.vg |
| Electronic supplied by | Radio Holland |
| Radar | JRC RADAR1000 M. LV20478 |
| GPS | LCD SITEX MODEL. 1031203 |
| AIS | FURUNO |
| Radio | 2 VHF (ENTEL HT644)S.N (JHU05628 & JHU05626 ) |
| Material | Steel |
| L.O.A | 13.300 Meters |
| Draft | 0.90 CM – Mix Draft |
| Girth | 7.7 Meters |
| Gross Tonnage | 32.710 ton |
| Net Tonnage | 4.230 ton |
| Main Engines | 2 M.W.M x 143 HP |
| Generators | 2 Generators 40kw |
| Life raft | 1 HAF (10 PASSENGER |
| Equipment | VHF (FURUNO -2520)-2 Walkie talkies |
| Crane | 1.5 ton Mix |
